Artec SE-2 2 Band EQ On Board Circuit for Electric Guitar & Bass 4 Pots Model

Regular price
$22.99 USD
Regular price
Sale price
$22.99 USD
Shipping calculated at checkout.

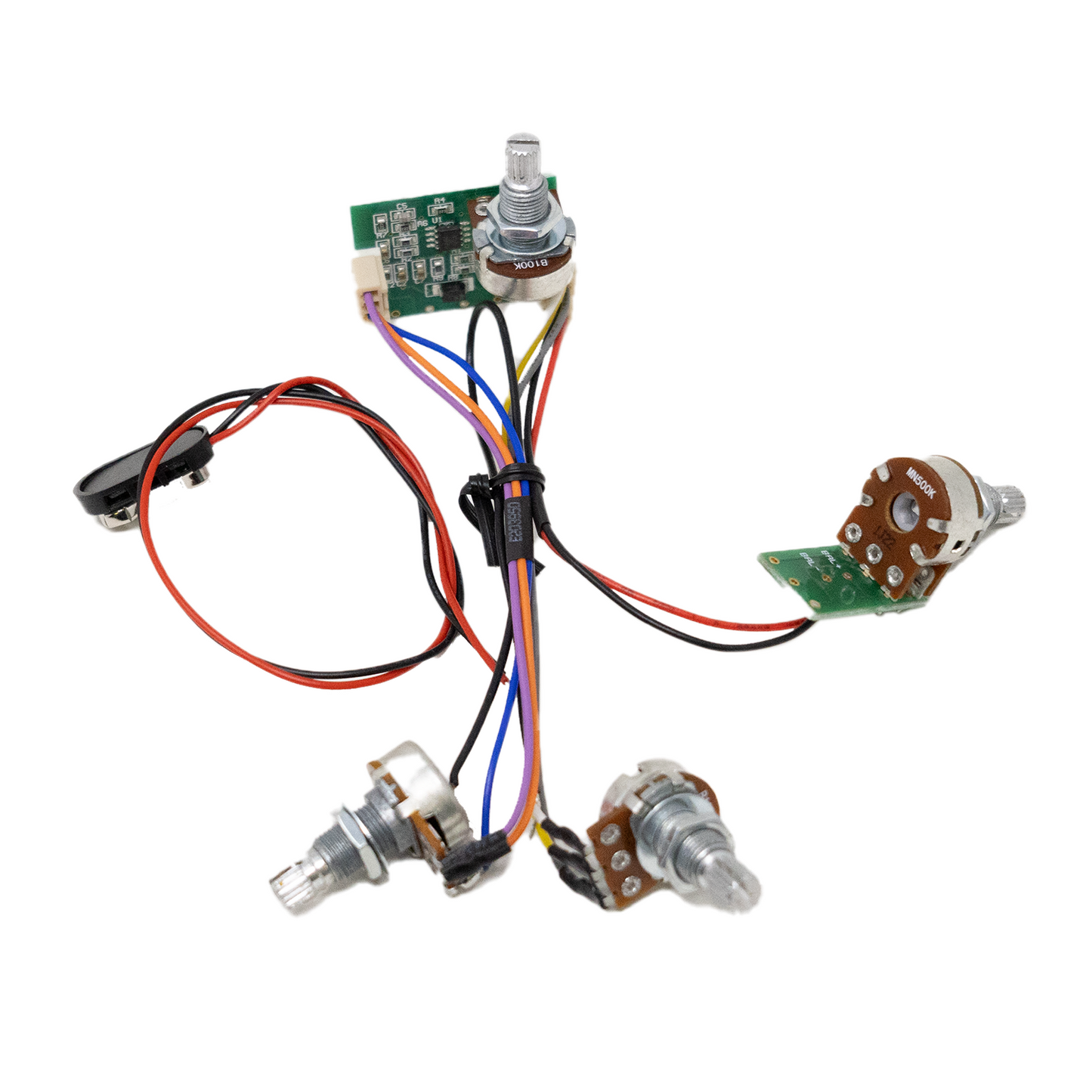

  • SE2 features a pre-wired balance control and master volume and treble on separate potentiometers with the bass on SMT PCB.
  • Each control pots are designed to connect to PCB by a connector, which make SE2 installation easier and versatile.
  • Additional wiring you may need for SE2 installation is just Pickup, Output Jack, Ground and Battery cable.
  • High Impedance Input design can match with any Active or Passive Pickup and also Low Impedance Output will keep the same tone from your guitar to any PA system without losing high frequency response.
  • Using advanced Surface Mounted Techniques could reduce unwanted sound (Noise) while increasing sound quality
  • and it's reliability.
  • ARTEC guarantees a virtually noiseless sound with long 9V battery life.
  • SE2-A features SE2 with Concentric Potentiometer, which is Bass and Treble eq's on one pot and mounted on SMT PCB.
  • (more than 4000 hours in continuous use. - workable voltage : drop down to 6 V).
  • Application : Electric Basses, Electric guitars & Piezo pickup equipped instruments.

Technical Specifications :
  • 4 individual pots
  • Balance, Treble, Volume, Bass
  • Battery clip
  • Bass : +/-12 dB at 100 Hz
  • Treble : +/-12 dB at 4 kHz
  • Balance : MN500K Potentiometer
  • Current : 0.16 mA
  • Voltage range : 6 V ~ 22 V
  • Power: 9 V Battery (Battery not included)
